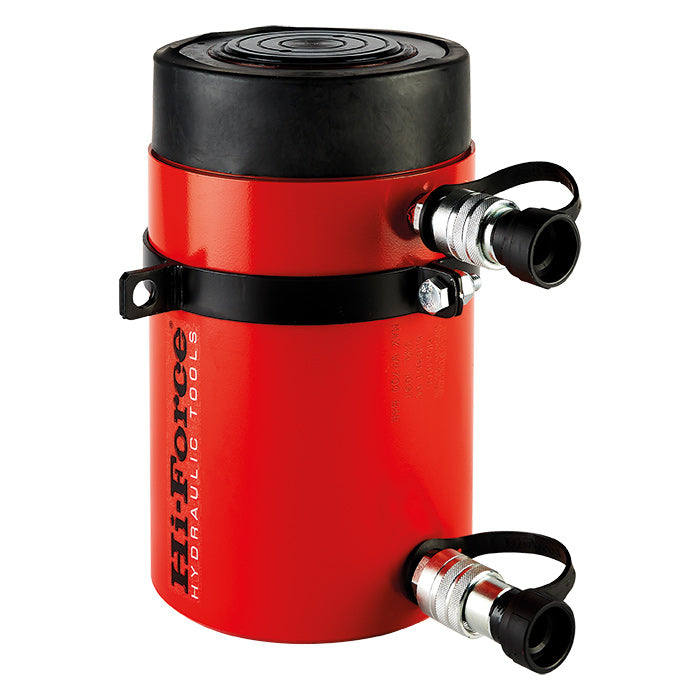

Working load limit:109000,00 kg Max. operating temperature:80,00 °C Min. operating temperature:-20,00 °C Explosion protection:No Material:Steel Operating pressure:700,00 bar Operating principle:Double-acting Tensile force:36000,00 kg Oil capacity:5060,00 cm3 Piston version:Smooth piston Piston stroke:330,00 mm Cylinder height retracted:482,00 mm Cylinder piston diameter:114,00 mm Effective piston surface:153.3 cm2 Cylinder diameter:185,00 mm Collar thread of cylinder body:6 7/8"-12-UN Pressure piece type:Fixed Safety valve against overpr.:Yes Integrated pump:No Outside mounting thread:M 12 Colour:red Locking ring:No Product description:Piston Jack Manufacturer:Hi-Force Brand:Hi-Force Short text product descr.:Lifting Cyl. Type designation:HDA10013]]>
