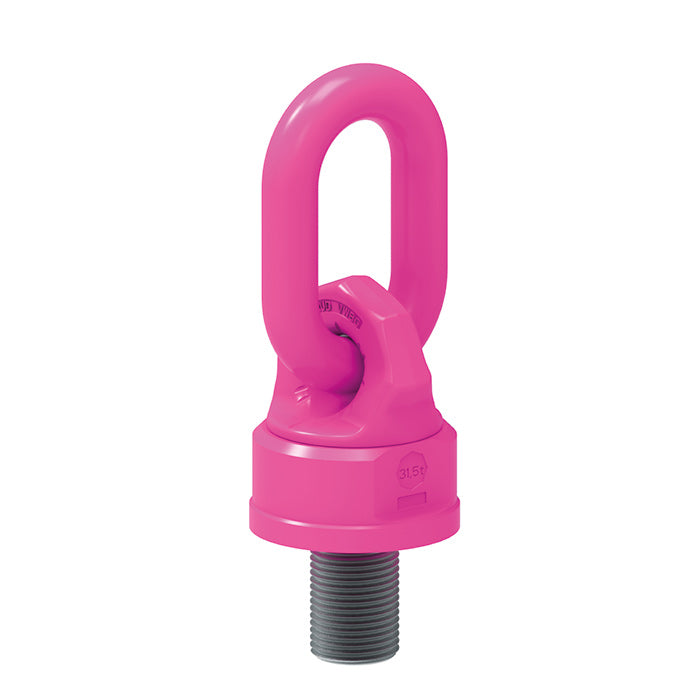

Load ring 12,000 kg VWBG M 45x67 mm steel

Name: Load ring 12,000 kg VWBG M 45x67 mm steel
Brand: Carl Stahl
SKU: 25250000015368
Price: 727.45 EUR
Availability: InStock

Working load limit:12,000.00 kg
Max. operating temperature:400.00 °C
Min. operating temperature:-40.00 °C
Explosion protection:No
Material:Steel
Inner width:65.00 mm
Inner height:111.00 mm
Attachment type:Screw-on
Permissible load capacity at 90°:12,000.00 kg
Rotates under load:Yes
Turning range:360.00 degrees
Bearing type:Ball bearing
Material thickness:26.00 mm
Swivel range of suspension link:230.00 degrees
Colour:Pink
Surface treatment:Powder-coated
Thread size:M45
Standard:DIN EN 1677-1
Product description:Load ring
Manufacturer:RUD
Brand:VIP
Short product description:Load ring
Type designation:VWBG
Torque for permissible attachment:235.00 Nm
Bolt available:Yes
Usable bolt length:67.00 mm

SKU:25250000015368

€727,45 EUR
