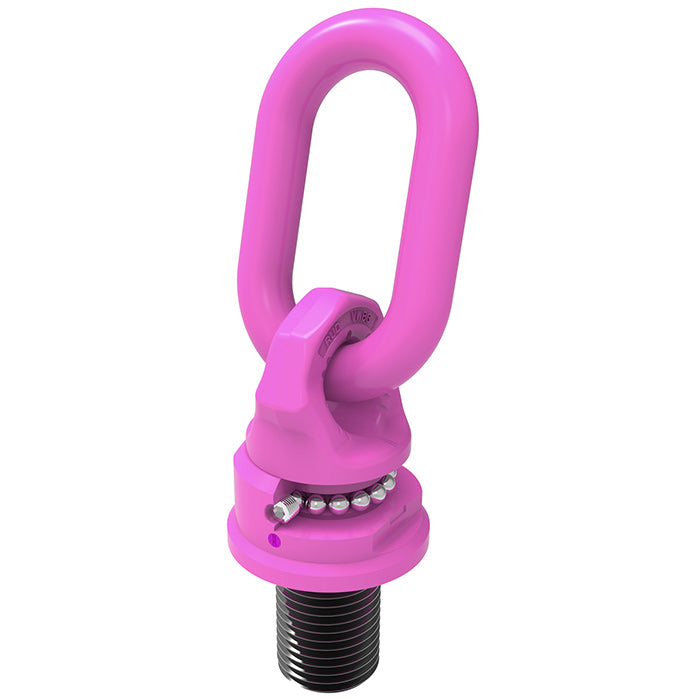

Working load limit:31500,00 kg Max. operating temperature:400,00 °C Min. operating temperature:-40,00 °C Explosion protection:No Material:Steel Inner Width:90,00 mm Inner Height:130,00 mm Attachment type:Screwable Perm. load capacity 90°:31500,00 kg Rotates under load:Yes Turning range:360,00 Degree Bearing type:Ball bearing Material thickness:46,00 mm Swivel range suspension link:230,00 Degree Colour:pink Surface treatment:Powder-coated Thread Size:M72 Standard:DIN EN 1677-1 Product description:Load-Ring Manufacturer:RUD Brand:VIP Short text product descr.:Load-Ring Type designation:VWBG Torque for perm. attachment:1200,00 Nm Bolt available:Yes Usable bolt length:108,00 mm]]>
