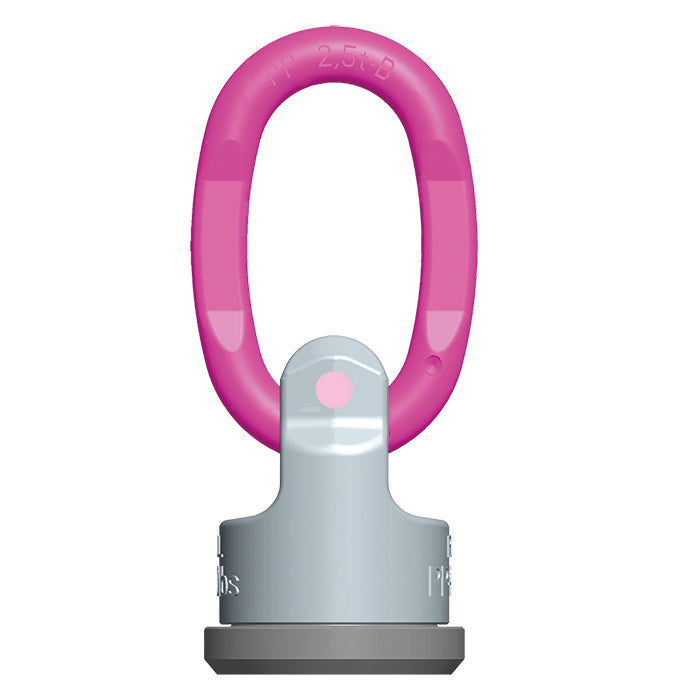

Working load limit:8000,00 kg Max. operating temperature:400,00 °C Min. operating temperature:-40,00 °C Explosion protection:No Material:Steel Inner Width:65,00 mm Inner Height:140,00 mm Attachment type:Weldable Welding seam:HY3+10 Perm. load capacity 90°:8000,00 kg Rotates under load:Yes Turning range:360,00 Degree Bearing type:Ball bearing Material thickness:24,00 mm Swivel range suspension link:230,00 Degree Colour:pink Surface treatment:Powder-coated Standard:DIN EN 1677-1 Product description:Load-Ring w. Master Link Manufacturer:RUD Brand:VIP Short text product descr.:Load-Ring Type designation:WPP-B]]>
