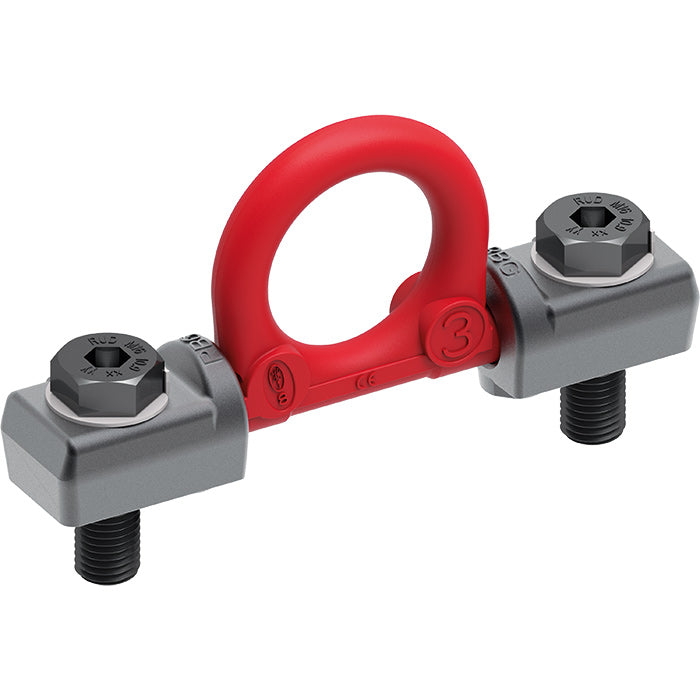

Working load limit:3000,00 kg Max. operating temperature:350,00 °C Min. operating temperature:-20,00 °C Explosion protection:No Material:Steel Inner Width:48,00 mm Inner Height:48,00 mm Attachment type:Screwable Perm. load capacity 90°:3000,00 kg Rotates under load:No Material thickness:16,00 mm Holding spring for susp. link:No Swivel range suspension link:180,00 Degree Colour:red Surface treatment:Powder-coated Thread Size:M16 Standard:DIN EN 1677-1 Product description:Load Ring Manufacturer:RUD Short text product descr.:Load Ring Type designation:RBG Torque for perm. attachment:120,00 Nm Usable bolt length:30,00 mm]]>
