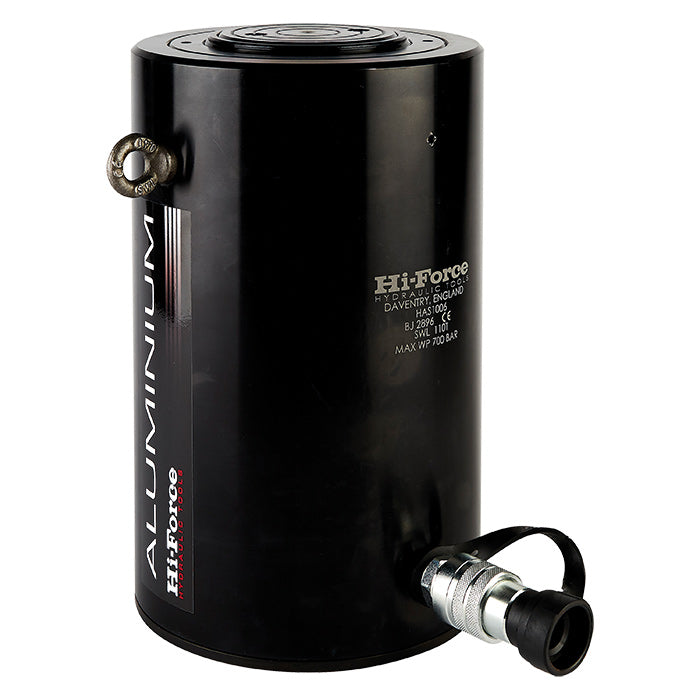

Working load limit:110000.00 kg Max. operating temperature:80.00 °C Min. operating temperature:-20.00 °C Explosion protection:No Material:Aluminium Operating pressure:700.00 bar Operating principle:Single-acting Retraction type:Spring return Oil capacity:2340.00 cm3 Piston version:Smooth piston Piston stroke:152.00 mm Cylinder height retracted:317.00 mm Cylinder piston diameter:110.00 mm Effective piston surface:153.9 cm2 Cylinder diameter:195.00 mm Pressure piece type:Fixed Safety valve against overpr.:No Integrated pump:No Colour:black Locking ring:No Product description:Piston Jack Manufacturer:Hi-Force Brand:Hi-Force Short text product descr.:Lifting Cyl. Type designation:HAS1006]]>
