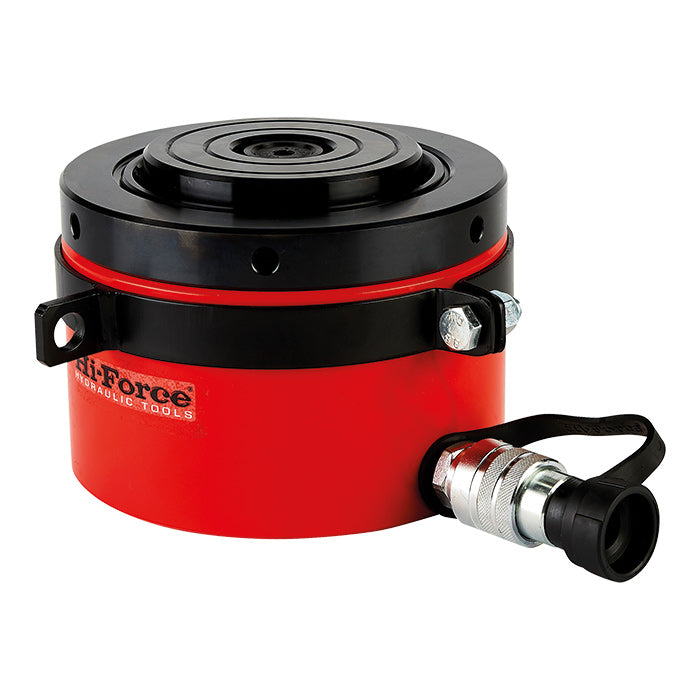

Working load limit:109000.00 kg Max. operating temperature:80.00 °C Min. operating temperature:-20.00 °C Explosion protection:No Material:Steel Operating pressure:700.00 bar Operating principle:Single-acting Retraction type:Load return Oil capacity:770.00 cm3 Piston version:Smooth piston Piston stroke:50.00 mm Cylinder height retracted:137.00 mm Cylinder piston diameter:140.00 mm Effective piston surface:153.4 cm2 Cylinder diameter:185.00 mm Pressure piece type:Movable Safety valve against overpr.:No Integrated pump:No Colour:red Locking ring:Yes Product description:Piston Jack Manufacturer:Hi-Force Brand:Hi-Force Short text product descr.:Lifting Cyl. Type designation:HFL1002]]>
