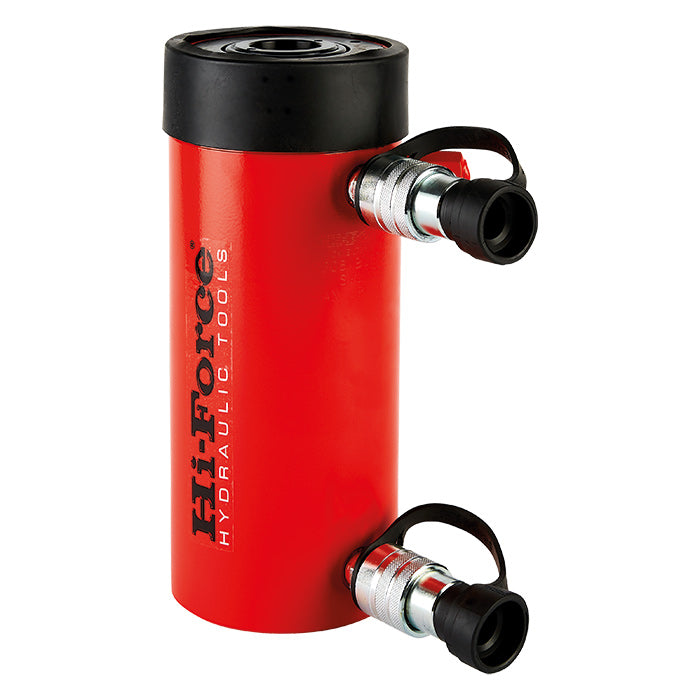

• Hi-Force HHR302 double-acting hollow piston jack 33,000 kg, 51 mm stroke
1 1

Piston Jack HHR1003 102,000kg 76mm

Piston Jack HHR1003 102,000kg 76mm

  • Working load limit: 102000.00 kg
  • Max. operating temperature: 80.00 °C
  • Min. operating temperature: -20.00 °C
  • Explosion protection: No
  • Material: Steel
  • Operating pressure: 700.00 bar
  • Operating principle: Double-acting
  • Tensile force: 43000.00 kg
  • Oil capacity: 1087.00 cm3
  • Piston version: Hollow piston
  • Piston stroke: 76.00 mm
  • Cylinder height retracted: 310.00 mm
  • Cylinder piston diameter: 140.00 mm
  • Effective piston surface: 143.1 cm2
  • Cylinder diameter: 213.00 mm
  • Collar thread of cylinder body: "8 3/8""-12-UN"
  • Pressure piece type: Fixed
  • Safety valve against overpr.: Yes
  • Integrated pump: No
  • Outside mounting thread: M 16
  • Colour: red
  • Locking ring: No
  • Product description: Piston Jack
  • Manufacturer: Hi-Force
  • Brand: Hi-Force
  • Short text product descr.: Lifting Cyl.
  • Type designation: HHR1003

15341000015047

€5.953,56 EUR
€5.953,56 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Delivery in Lithuania ~2–3 business days if the items are in stock; if they are out of stock ~7–14 business days
