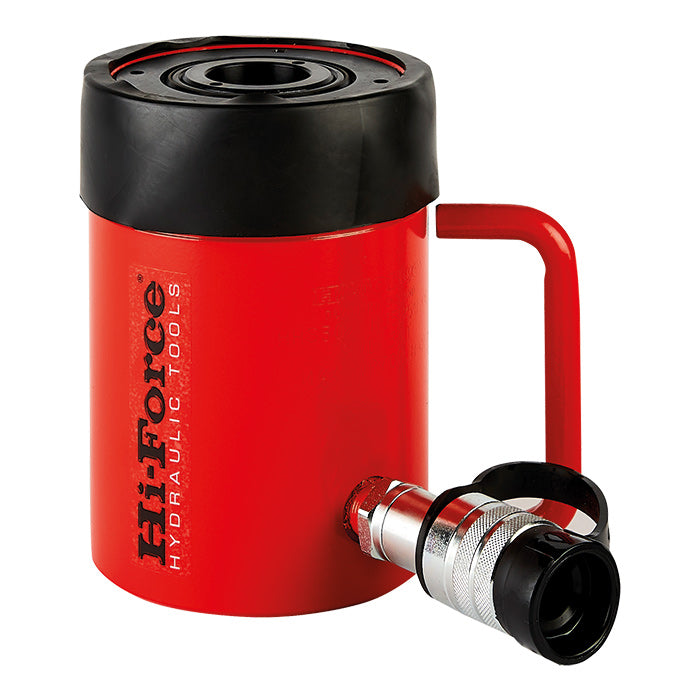

• Hi-Force HHS101 hollow piston jack 11,000 kg, 25 mm stroke
1 1

Piston Jack HHS101 11,000kg 25mm

Piston Jack HHS101 11,000kg 25mm

  • Working load limit: 11000.00 kg
  • Max. operating temperature: 80.00 °C
  • Min. operating temperature: -20.00 °C
  • Explosion protection: No
  • Material: Steel
  • Operating pressure: 700.00 bar
  • Operating principle: Single-acting
  • Retraction type: Spring return
  • Oil capacity: 39.00 cm3
  • Piston version: Hollow piston
  • Piston stroke: 25.00 mm
  • Cylinder height retracted: 110.00 mm
  • Cylinder piston diameter: 38.00 mm
  • Effective piston surface: 15.8 cm2
  • Cylinder diameter: 70.00 mm
  • Collar thread of cylinder body: 2 3/4"-16-UN
  • Pressure piece type: Fixed
  • Safety valve against overpr.: No
  • Integrated pump: No
  • Outside mounting thread: M 8
  • Colour: red
  • Locking ring: No
  • Product description: Piston Jack
  • Manufacturer: Hi-Force
  • Brand: Hi-Force
  • Short text product descr.: Lifting Cyl.
  • Type designation: HHS101

15341000015053

€1.020,21 EUR
€1.020,21 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
