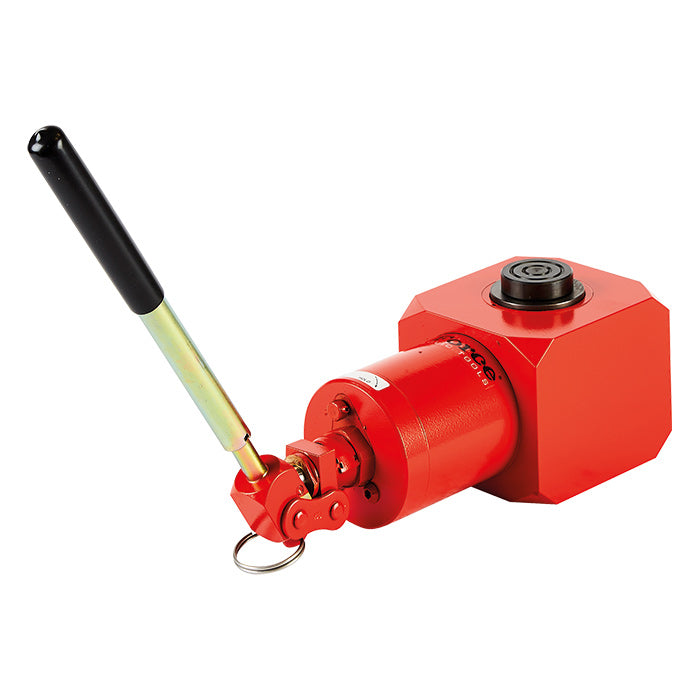

Working load limit:10000.00 kg Max. operating temperature:50.00 °C Min. operating temperature:-20.00 °C Explosion protection:No Material:Steel Operating pressure:700.00 bar Operating principle:Single-acting Retraction type:Spring return Piston version:Smooth piston Piston stroke:35.00 mm Cylinder height retracted:76.00 mm Cylinder piston diameter:38.00 mm Pressure piece type:Fixed Safety valve against overpr.:Yes Integrated pump:Yes Colour:red Locking ring:No Product description:Piston Jack wth. integr. Pump Manufacturer:Hi-Force Brand:Hi-Force Short text product descr.:Lifting Cyl. w/Pump Type designation:JCS10]]>
