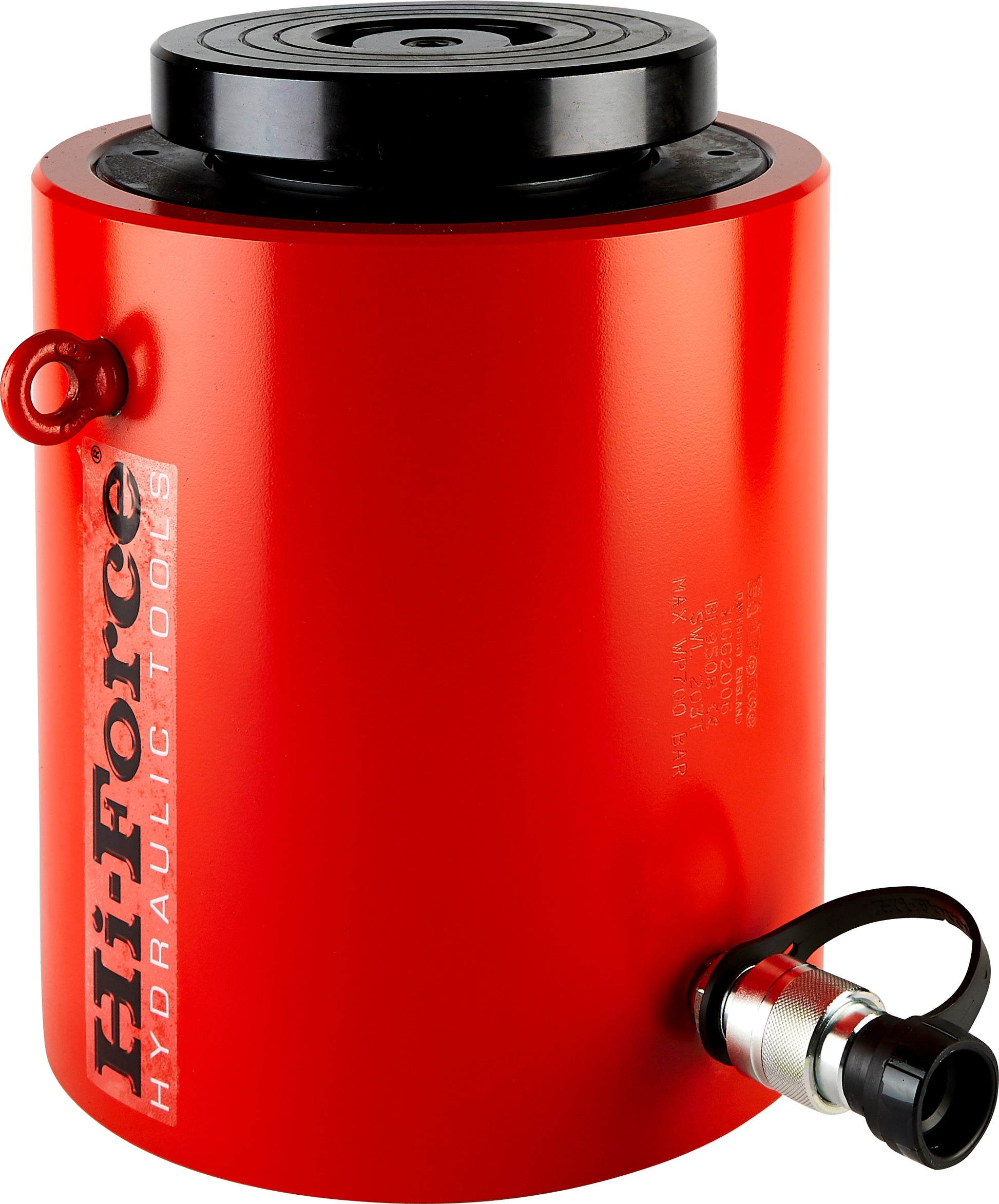

Working load limit:152000.00 kg Max. operating temperature:80.00 °C Min. operating temperature:-20.00 °C Explosion protection:No Material:Steel Operating pressure:700.00 bar Operating principle:Single-acting Retraction type:Load return Oil capacity:3320.00 cm3 Piston version:Smooth piston Piston stroke:155.00 mm Cylinder height retracted:297.00 mm Cylinder piston diameter:114.00 mm Effective piston surface:214.3 cm2 Cylinder diameter:210.00 mm Pressure piece type:Movable Integrated pump:No Colour:red Locking ring:No Product description:Piston Jack Manufacturer:Hi-Force Brand:Hi-Force Short text product descr.:Lifting Cyl. Type designation:HGG1506]]>
