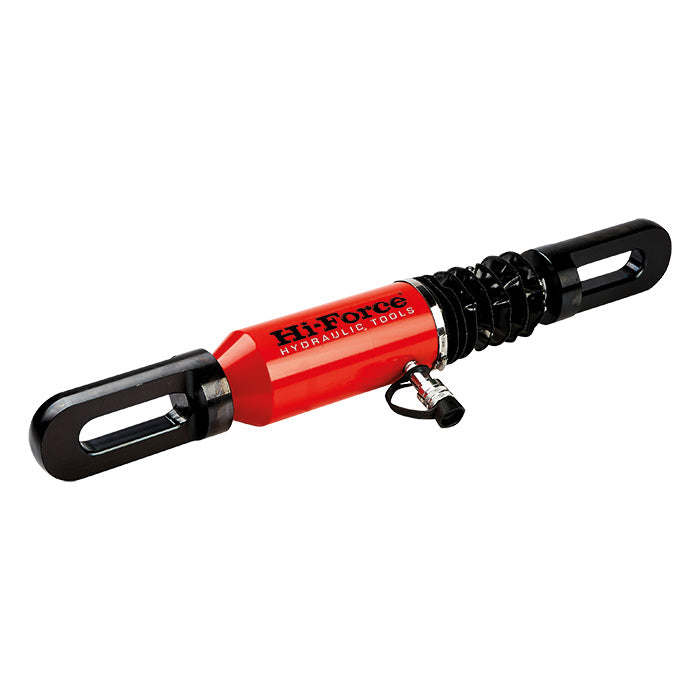

Working load limit:10000,00 kg Max. operating temperature:80,00 °C Min. operating temperature:-20,00 °C Explosion protection:No Material:Steel Operating pressure:700,00 bar Operating principle:Single-acting Retraction type:Spring return Oil capacity:228,00 cm3 Piston stroke:152,00 mm Cylinder height retracted:666,00 mm Cylinder diameter:80,00 mm Safety valve against overpr.:Yes Integrated pump:No Colour:red Locking ring:No Connector type:Eyelet connection Product description:Pull Cylinder Manufacturer:Hi-Force Brand:Hi-Force Type designation:HPC106]]>
