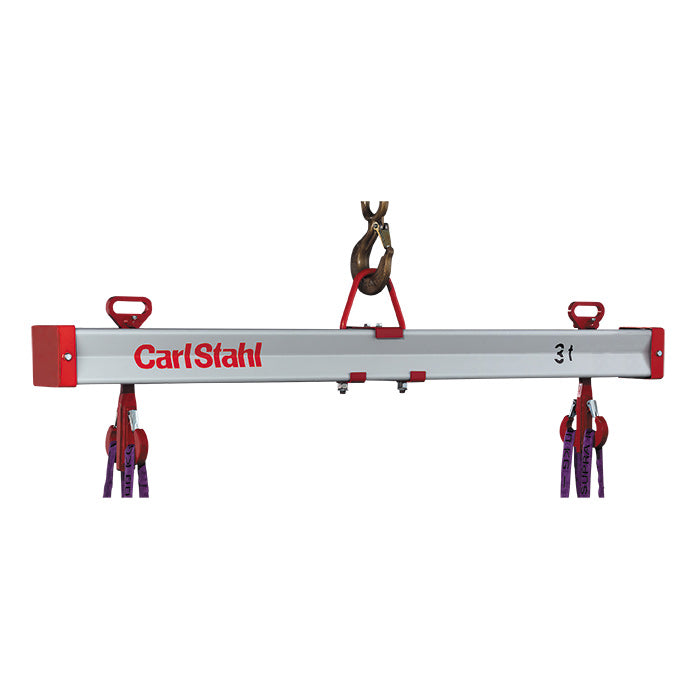

Sprdr.Beam 8394 1.000kg

Working load limit:1000.00 kg
Max. operating temperature:80.00 °C
Min. operating temperature:0 °C
Explosion protection:No
Surface:Varnished
RAL colour no.:RAL 7035 / RAL 3020
Inside Wdth of Suspension Eye:50.00 mm
Inside Height Suspension Eye:90.00 mm
Standard:DIN EN 13155
Documentation:Manual, EC-Declaration of Conformity
Documentation:Certificate of Testing
Documentation:Drawing
Language documentation:German
Output medium documentation:In a plastic box on goods
Identification:Nameplate, Test sticker
Identification:Working load limit
Identification:Net weight
Max. load changes:16,000 Load change
Crane connection:Crane eye
Adjustable crane connection:No
Fork lifter connection:No
Load connection:doublehook
Impact protection:No
Hazardous material:No
Asymmetric setting permitted:No
Max. permissible inclination:6°
Turning function:No
Load connetion adjustable:Yes
Type of adjustment load con.:in a grid
Effective height:300.00 mm
Design type:Omega cross beam
Quant. crane connection:1
Drawing number:0
Product description:Lifting beam
Manufacturer:Carl Stahl
Short text product descr.:Lift. beam
Quant. load connections:4
Type name:8394
working width L1 min.:250.00 mm
working width L1 max.:850.00 mm
Working width adjustable:Yes
outer dimension needed?:Yes]]>
