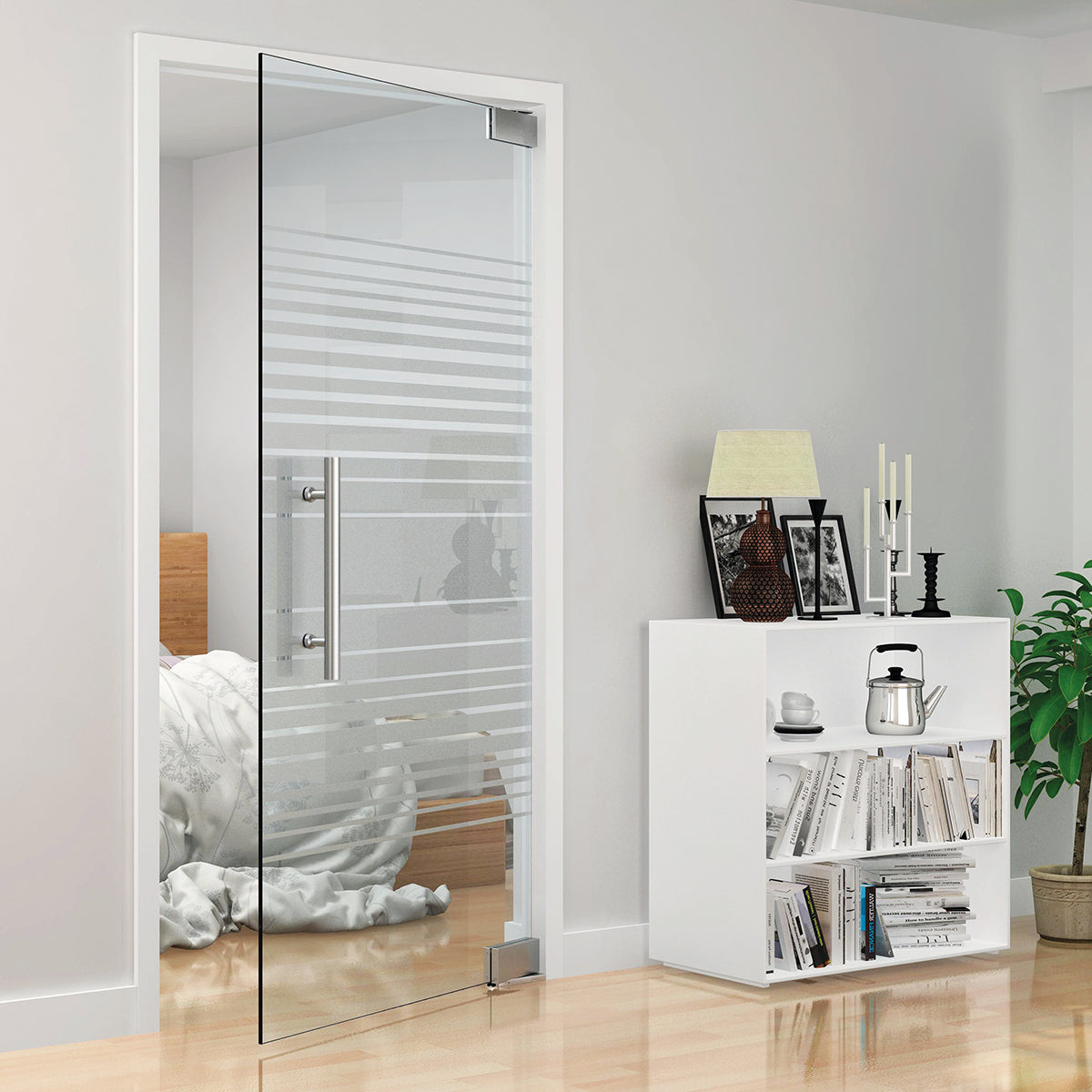

The MARLOUKE hydraulic swing door combines modern design with robust functionality and is ideal for demanding applications in doctors' surgeries, hotels, schools, offices, private homes and public buildings. Suitable for 8-12 mm thick glass and with a maximum door width of 900 mm and a maximum height of 3,000 mm, the swing door reliably holds door leaves weighing up to 100 kg. The door offers an attractive stainless steel or black design and impresses with its precise zero position adjustment and 90° hold-open in the open position. With an opening angle of up to 140° and a 2-way adjustable closing speed (140°-10° and 10°-0°), it offers flexibility and convenience. MARLOUKE contains a specially designed floor bearing and enables the door leaf to be opened and closed on both sides - the perfect solution for stylish and durable room partitioning.
Features at a glance
Suitable for 8-12 mm glass
Suitable for max. door width of 900 mm and max. door height of 3,000 mm
Surfaces: Stainless steel or black design
suitable for max. door weight of 100 kg
with improved zero position adjustment
with 90° hold-open function when the swing door is open
Suitable for doctors' surgeries, hotels, schools, offices, private homes and public buildings
Opening angle max. 140°
2-way adjustable closing speed (140°-10° and 10°-0°)
8 mm floor clearance required
Glass processing required
incl. uniquely designed floor bearing for the floor
For opening and closing the door leaf on both sides
