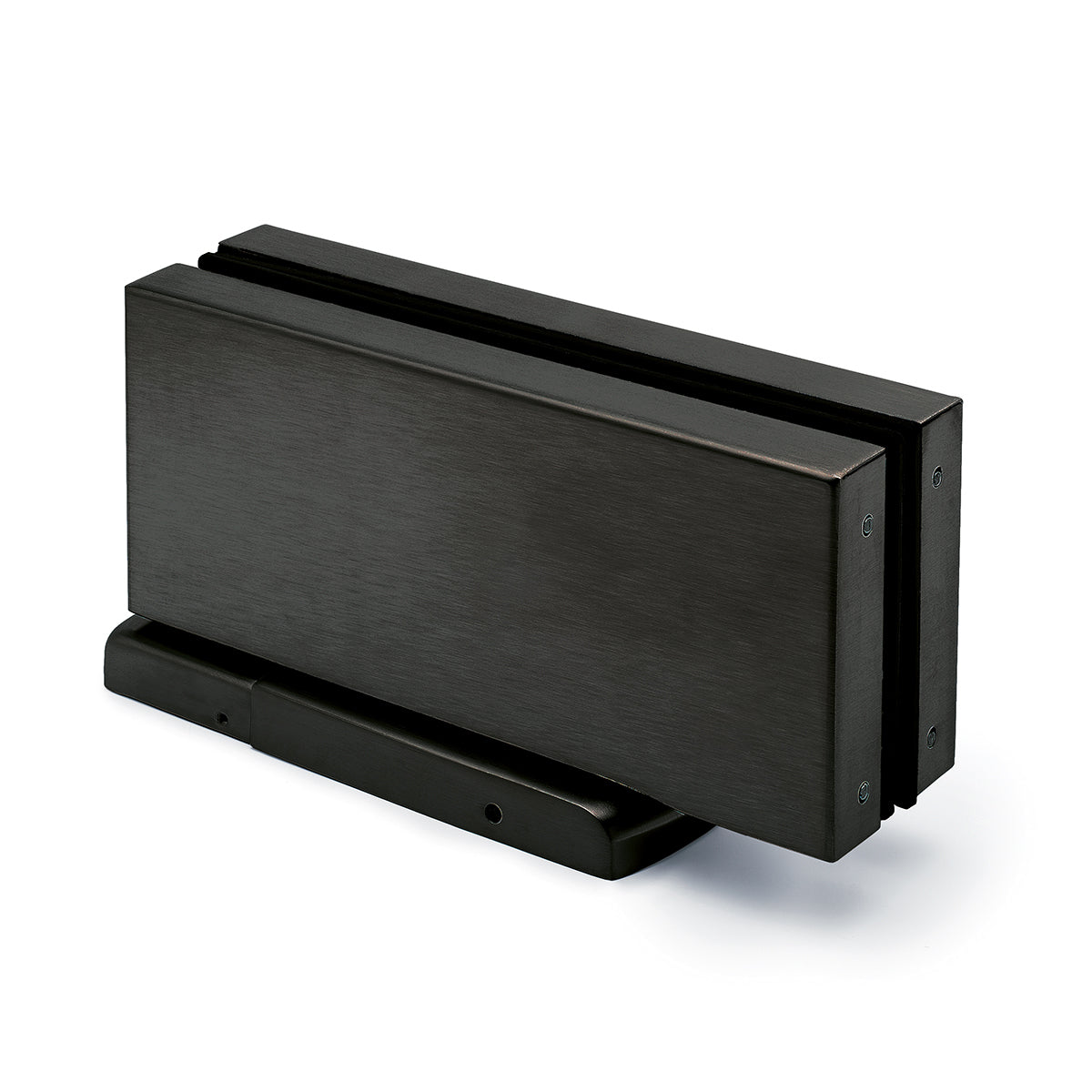

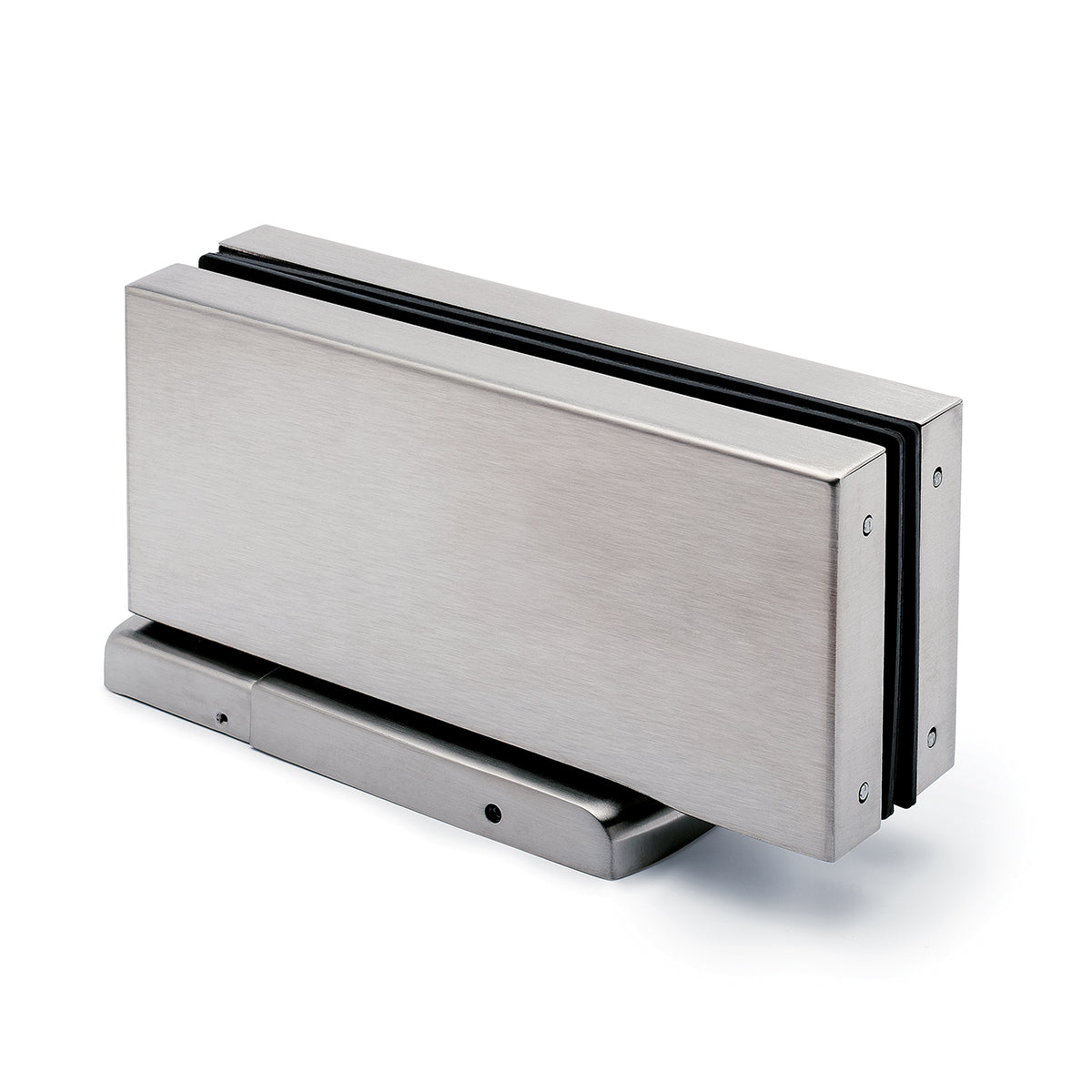

G-fittings Hydraulic patch fitting Levi

Discover our hydraulic patch fitting LEVI.

• suitable for 8-12 mm glass
• Suitable for max door width of 900 mm and max door height of 3,000 mm
• according to EN 1154 according to European standard tested for 500,000 cycles.
• Surfaces: Stainless steel or black design
• no need to lift the floor
• Suitable for max door weight of 100 kg
• with improved zero position adjustment
• with 90° hold-open when swing door is open
• Suitable for medical practices, hotels, schools, offices, private residences and public buildings
• Opening angle max. 120°
• 2-position adjustable closing speed (90°-30° and 30°-0°)
• 10 mm floor gap dimension required
• Glass processing required
• Includes uniquely designed floor bearing for floor
• 3-way adjustment, +/-3.5mm horizontal, +/-5mm left/right and +/-4° floor adjustment.
• For opening and closing the door leaf on both sides
