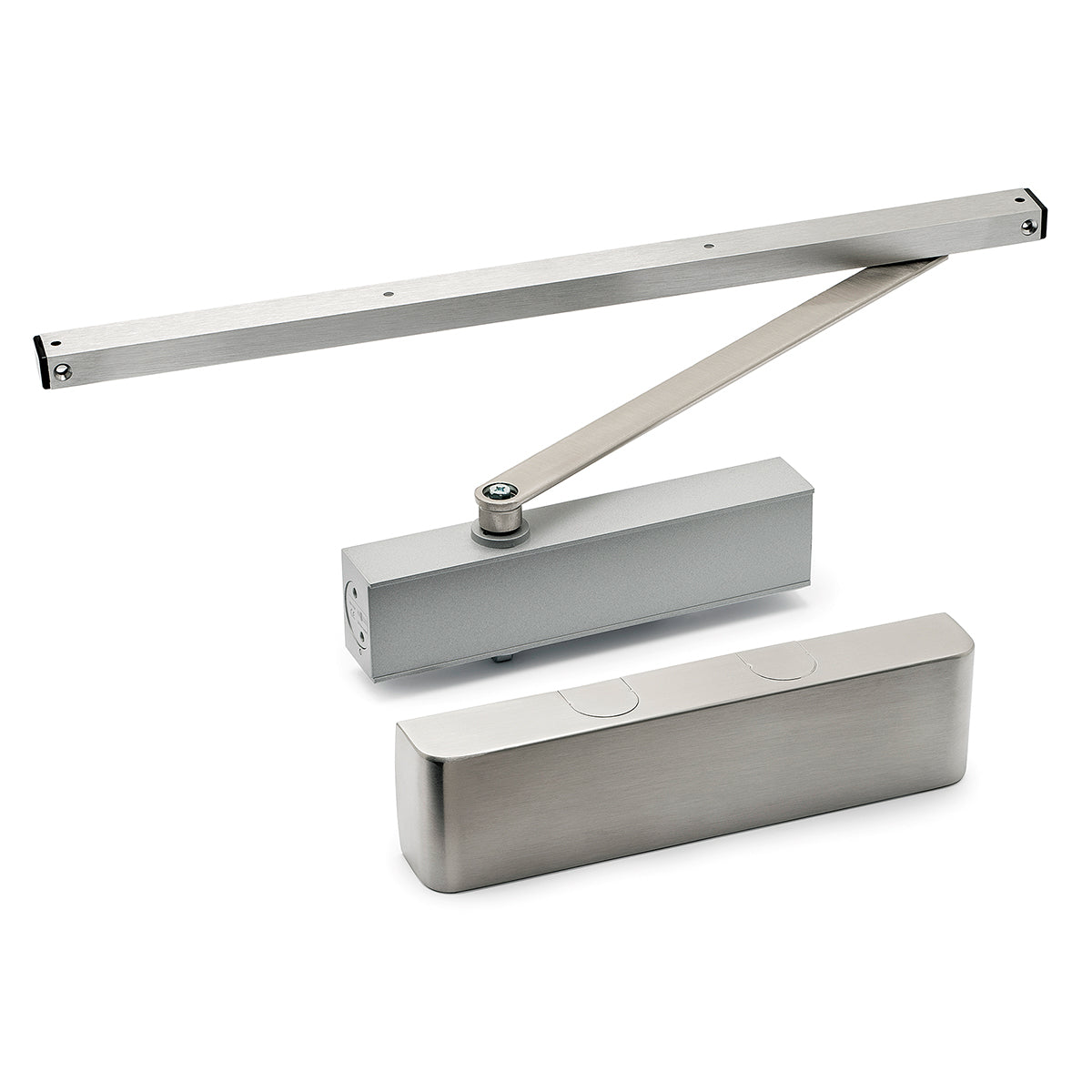

The MYRTHA overhead door closer is a high-quality and reliable solution for automatic door closing in residential, commercial and public buildings. With its innovative technology, the door closer enables a smooth and silent closing movement that offers security and convenience in equal measure. With the ELNA filler plate , the door closer can also be used for deeper door frames.
The PHYLLIS glass fixing shoe is required for use. This is available separately as an accessory.
Adjustable closing force: Range from size 2 to 4.
Maximum door width: Suitable for doors with a width of up to 1100 mm.
Maximum door weight: Suitable for doors weighing up to 100 kg.
Force adjustment: Adjustable by positioning.
Mechanism: Operates with a rack and pinion system.
Closing speed: Adjustable via an integrated valve.
Final closing speed: Adjustable via a separate valve.
Opening angle: Enables an opening angle of up to 180°.
Reversibility: Developed as a reversible door closer for easy installation.
Fire resistance: Certified as fire resistant.
CE marking: Complies with EU safety and environmental regulations.
Certification: Tested and certified according to EN 1154 standards
