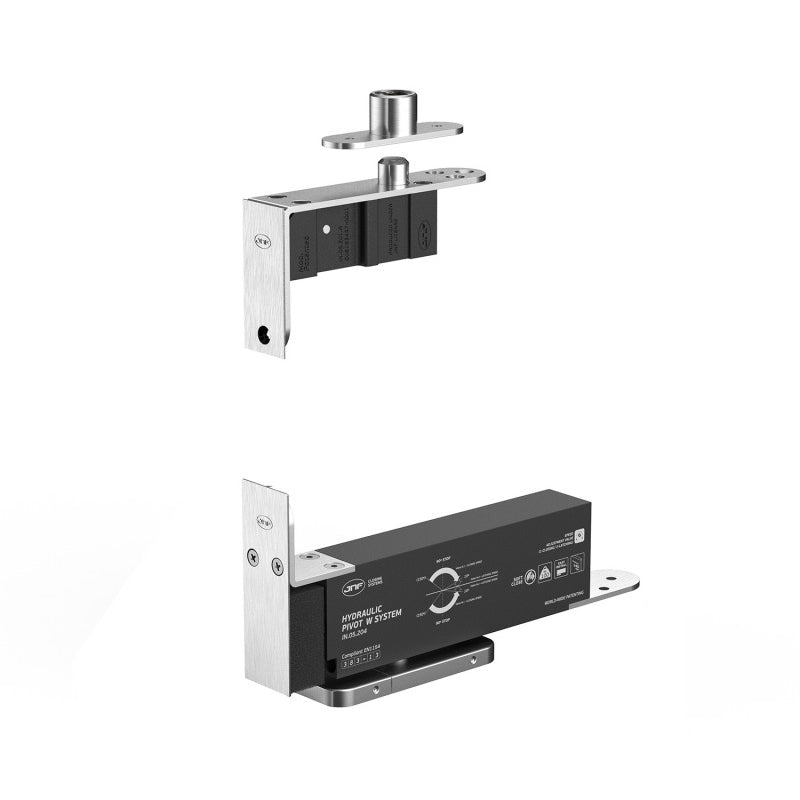

G-fittings hydraulic door hinge for wooden doors, Jora

Discover our JORA hydraulic door hinge for hinged wooden doors—the ideal solution for demanding door applications. Our innovative hinge offers precise adjustment of the closing valve with two speeds, giving you maximum control over the door’s movement.

With an impressive maximum width of 1000 mm and a load capacity of up to 100 kg, our door hinge is perfect for a wide range of applications. Its design allows it to be fitted to wooden doors with a thickness of at least 40 mm, ensuring robust and reliable performance.

The door hinge is internationally patented, which speaks not only to its uniqueness but also to the advanced technology behind it. The integrated system for precise door position adjustment allows for ± 3 mm of horizontal adjustment and ± 3 mm / 4º of vertical adjustment. This lets you align the door exactly to your requirements.

Floor-mounted installation ensures seamless integration into your living or working space, while the hinge itself is made from high-quality EN 1.4301 stainless steel. This guarantees durability and gives your door system an elegant, timeless look.

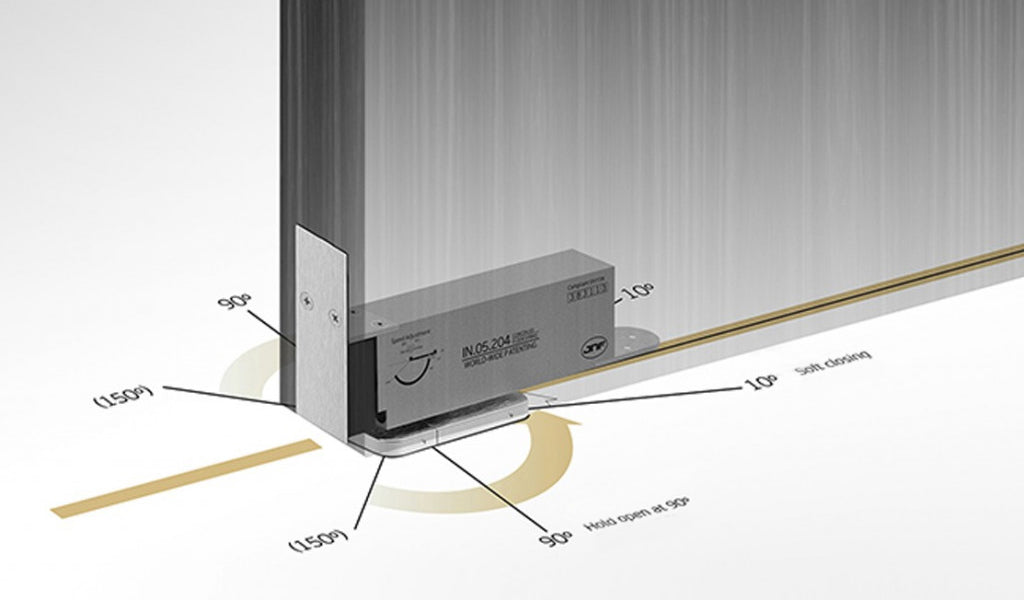

• Two-speed adjustment of the closing valve
• max. door width 1000 mm
• max. weight up to 100 kg
• Wood thickness ≥ 40 mm
• International patent
• Door position adjustment system ± 3 mm | ± 3 mm / 4º

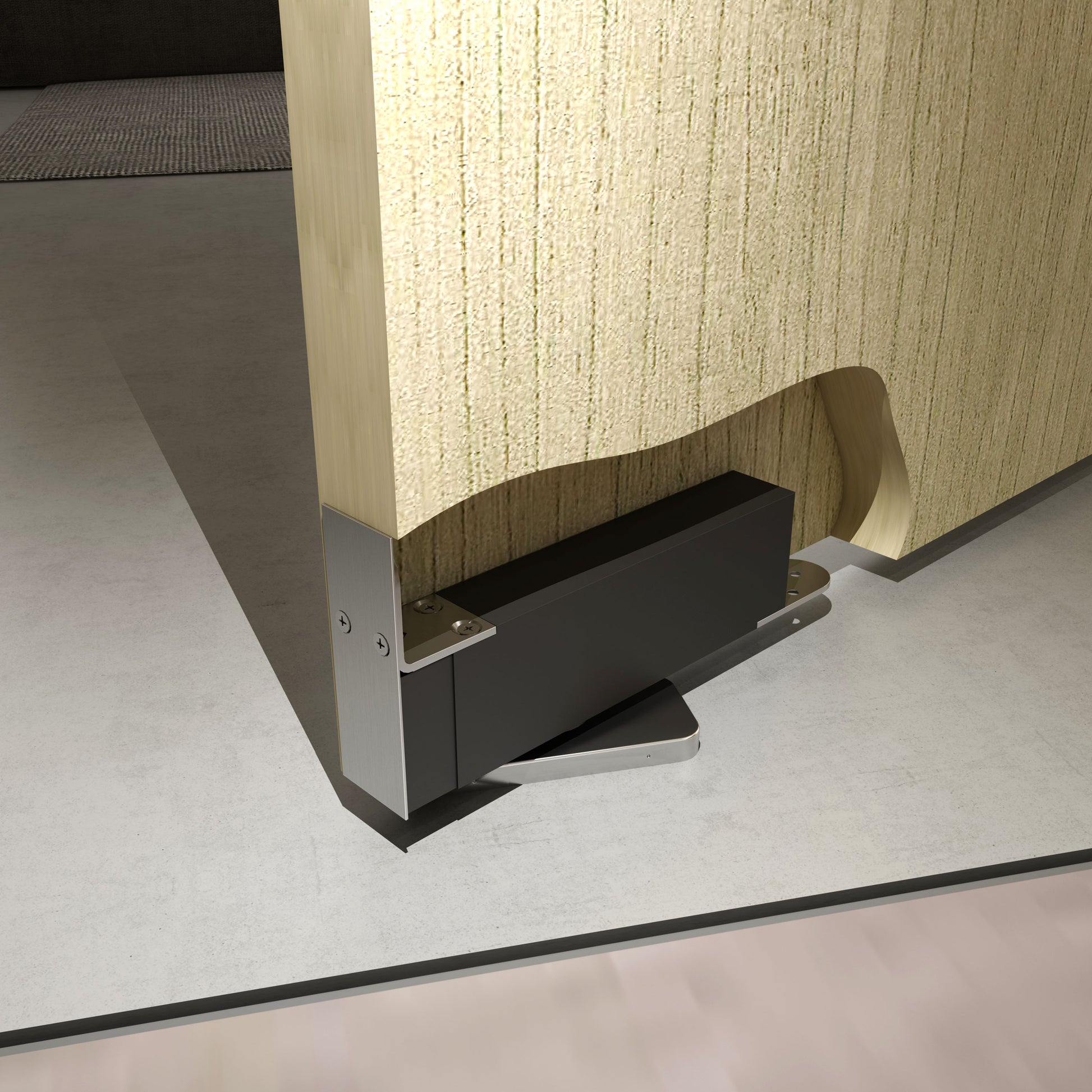

• Floor-mounted installation
• EN 1.4301 stainless steel
